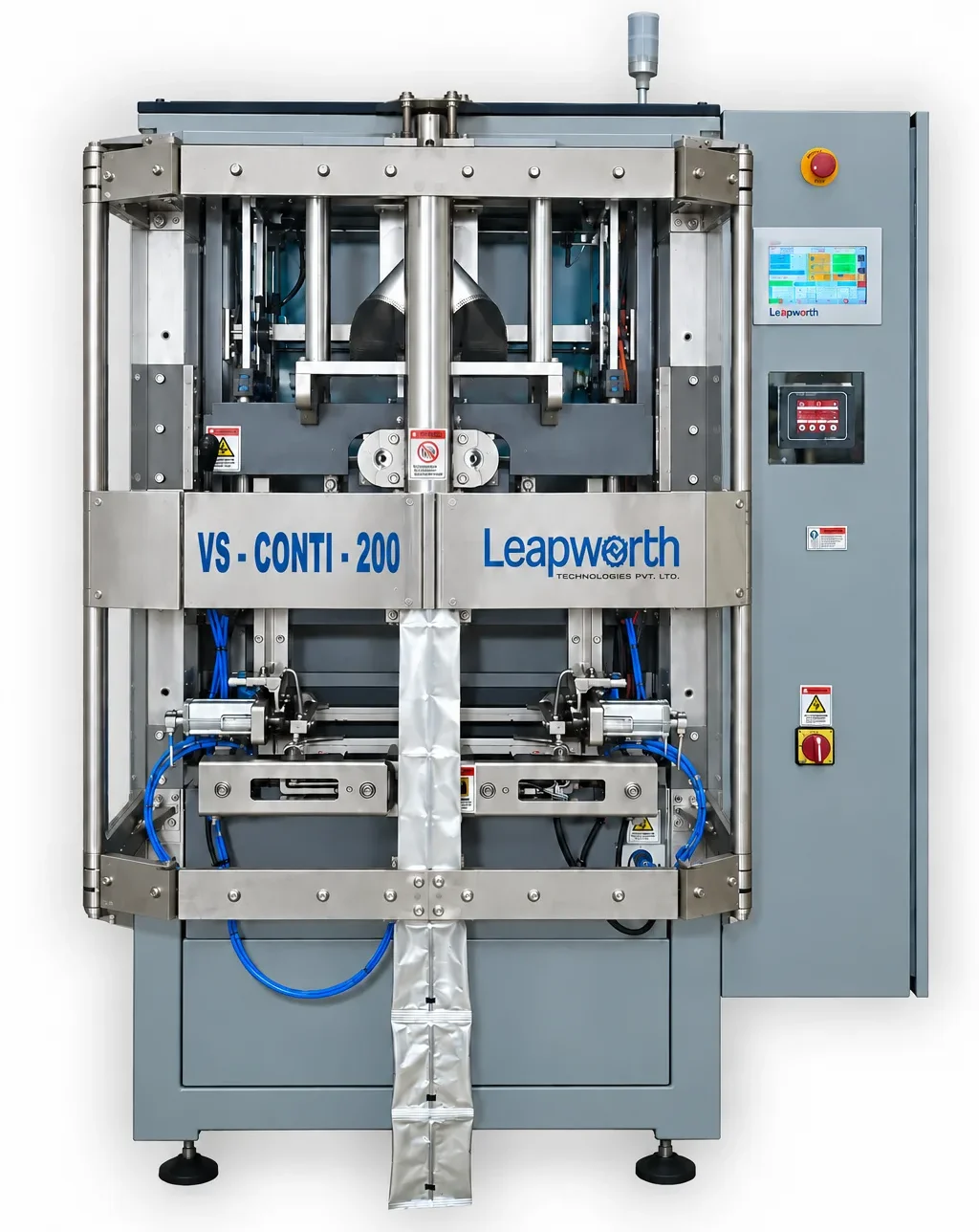

VS – CONTI - 200
VS-CONTI-200 is high-speed Continues motion vertical form fill machine. This machine is configured with intelligent Motion Controller. All the functions – Horizontal Sealer, Bag Puller as well Film roll unwinder is driven by servo motors. All Servo drives are networked with intelligent Motion controller for high performance.
This series can be synchronized with any one of the following fillers.
- Machines Specifications
- Technology
- Bag Width
- Bag Length
- Filling Weight range
- Maximum Film Roll width
- Air Required
- Machine Speed Maximum
- VS-CONTI-200
- Intermittent Motion
- 75 - 250 mm
- 110 - 350 mm
- 50 - 1000 GM
- 530 MM
- 4 CFM @ 6 BAR
- 130 bags up to per M
APPLICATION
Snack Food Products, Cereal & Health Products, Confectionery,
Tea, Nuts & Dry fruits, Granulated Products, Ground Spices, Whole Spices.
OPTIONAL FEATURES
- Nitrogen Purging Pre/Post
- Gusseting / Block Bottom with Gusseted
- Dust extraction system
